WEINIG VarioSplit 900: The flexible band resaw for high demands in terms of saw cuts and service life.

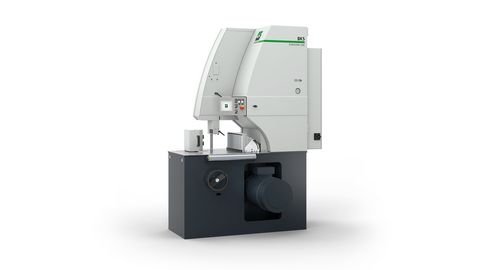

WEINIG VarioSplit 900

With the highest dimensional accuracy, the VarioSplit is in a class of its own. Large cutting heights are easily achieved with this machine and the wide saw blade guarantees a long service life. In the standard version, the entry-level model is equipped with a steplessly adjustable electronic feed with speeds of up to 40 m/min. In addition, the saw features an integrated bevel cut device that can be tilted to 45 degrees for high user flexibility.

Reduced set-up times as well as quick and easy measurement setting generate maximum productivity. Maximum safety for the operator and effective saw blade cleaning, band wheel cleaning and lubrication ensure smooth passage through the machine. Optionally, the standard package can be extended with a PLC control for programming and storing several cutting dimensions.
All quality and safety standards are fully met and WEINIG service competence rounds off this reliable overall package.

Prices
x

Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.


The WEINIG VarioSplit 900 provides

  • Solid and robust construction
  • Bevel-cut device
  • Easily adjustable and exchangeable saw blade guidance
  • Frequency-controlled feed drive
  • Simple and easy to adjust
  • Convenient operation
  • Maximum work safety

Technical Details

Future-oriented safety device

Optimum operator safety is ensured by locks, safety bars and emergency stop buttons in accordance with the latest occupational safety standards.

Highest value

The VarioSplit 900 also enables applications where the thinnest possible kerfs (currently min. 1.4 mm) are required. In this way, you always achieve the lowest waste or the highest value by minimizing cuttings. The exact width stop and the solid band guide also guarantee maximum cutting accuracy. In addition, the automatic width measurement actively supports the operator in optimizing the material yield.

Cutting tests

We carry out cutting tests for you in our WEINIG demonstration centers. Take the opportunity and test new materials, tools or processes with us. Do not hesitate to contact us. We offer the possibility to carry out cutting tests free of charge and thus to secure new investments through technology. Benefit from the wealth of experience of our application specialists!


Options for extension

Motorized blade tensioning

Learn more


Extended width stop

Learn more


“SplitAssist” width measurement

Learn more


Electronic control

Learn more



Further information

Brochures

Simple, fast and sustainable: more details in a downloadable PDF document.

WEINIG VarioSplit 900 brochure

Technical data

Open table

Further images
