WEINIG Turbo-LH 6000: Production of construction timber elements

WEINIG Konstruktionsanlagen

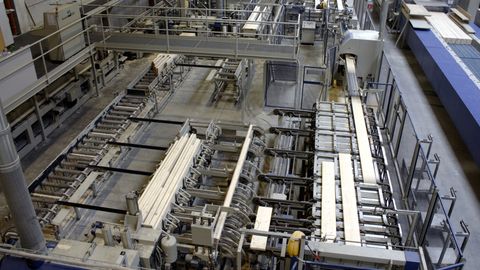

The Turbo-LH 6000 is a shaper combination with a package width of up to 600 mm, a package height (lamella width) of up to 300 mm and a timber feed in length of 900 - 6,000 mm.

The press system of the extrusion press (6 m/12 m) can achieve a performance of up to 80 m/min. Our new through-feed press DKK with a production performance of up to 160 m/min can be used for higher capacities with any outfeed length.

The GreconLine offers you mechanizations that are individually customized to your production process for this and all other finger jointing lines. For example, an infeed mechanization consisting of a cross conveyor, a double packaging station with a roller conveyor and a package cross feeder. During the mechanization operation, the wood panels with different lengths are pushed in parallel over the ejecting edge in the center. This procedure ensures rapid and trouble-free operation.


Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

WEINIG construction timber lines offer you

  • Vertical and horizontal jointing is possible
  • Long wood entry length such as 2 m, 3 m, 4 m or even 6 m
  • Shaper heights (timber width) up to 300 mm
  • Almost all glue types possible
  • Front-end, extrusion, cycle or through-feed presses possible
  • Vibration stop, package adjustment monitoring and splinter protection
  • Semiautomatic electrical adjustment

WEINIG Turbo-LH 6000 offers you

  • Processing newly sawn goods
  • Conveyor elements using star roller drives
  • Shaper heights (timber width) up to 300 mm
  • Glue application using glue comb or glue rollers
  • Infeed length up to 6,000 mm
  • With automatic packaging
  • All press types can be used (cycle, extrusion, front-end and through-feed presses)
  • Maximal capacity (depending on the press type) 70 m/min or 160 m/min

Technical Details

Vertical finger joint

WEINIG Konstruktionsanlagen

The vertical profile is mainly applied in constructive woodworking, but is also used for building windows and frames. It is has the largest glue surface and is therefore the most stable of all finger joints.

Further information


Simple, fast and sustainable: more details in a downloadable PDF document.

Brochure constructive timber products GreconLine (PDF, 5 MB)
