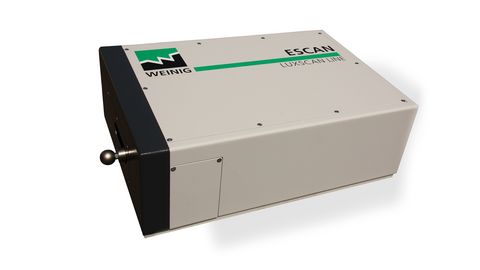

WEINIG EScan: A new dimension for sorting by strength


The EScan LuxscanLine represents a major step into a new application for WEINIG. In EScan, we are extending our product range with optimized sorting by strength. A range of different options for sorting by strength now enable certified production of glulam, DUO, TRIO and other strength-related products.

EScan is an inspection system for components with strength requirements in accordance with EN-14081. EScan calculates the strength class of a board on a cross conveyor via its dynamic E-module (MOEdyn,long) and the density ρ. A hammer causes the board to vibrate, which is measured by a laser interferometer. The density (ρ) is calculated from weight and dimension measurements. The bending strength is then calculated using statistical models. This proven method delivers consistent results for calculating the mechanical resistance (strength class) of a board.

Why not benefit from increased production performance and convince yourself of the many options and opportunities offered by the system in combination with the proven CombiScan Sense.


Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

The WEINIG EScan series provides

  • Up to 180 boards / minute
  • Dynamic E-module measurement via laser interferometer
  • Density measurement via dynamic weighing and dimension measurement
  • Measurement during throughout feed (board does not have to be stopped for measurement)
  • Easily integrated into existing production lines
  • User-friendly control interface (touchscreen)
  • Detailed production statistics
  • Network compatible
  • Can be directly connected to all optical and X-ray scanners of the CombiScan series
  • PC-based system

Further information


Simple, fast and sustainable: more details in a downloadable PDF document.

WEINIG EScan brochure (PDF, 1 MB)

Technical data

Open table
