WEINIG OptiCut 200 series: Strong concept for profitable, high-performance cross-cutting

Profitable cross-cutting is guaranteed with the high-precision Dimter Line OptiCut 200 series. To achieve maximum value creation, the OptiCut 200 series optimizing cross-cut saws not only cut out defects, they also calculate the best possible length combination from the available fixed lengths and cutting list. This guarantees maximum recovery and/or optimal value from your material. Finger-jointing lengths are fully integrated into the optimization and up to 8 different wood qualities can be classified. The wood simply has to be marked and placed into the machine infeed. The horizontal alignment makes this work stage much easier. Of course, you can also integrate fully-automatic defect detection (scanner) into the cutting line.

The universal OptiCut 200 and high-performance OptiCut 260 as well as the high-precision OptiCut 200 Exact all offer full optimization as standard. The low number of moving parts and intelligent drive system make the systems incredibly dynamic. The OptiCut series offers you innovative mechanical engineering from cross-cut saw specialists combined with state-of-the-art control technology and software - everything from a single source.

All machines in the Dimter Line OptiCut 200 series can be easily operated via the OptiCom terminal. Create a cutting list and off you go! Operating safety is also guaranteed under extreme conditions And another advantage: Owners of Dimter Line machines benefit from the service of an experienced manufacturer and the security of the worldwide presence of WEINIG.

All machines

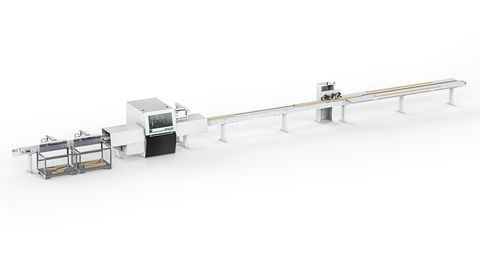

Optimizing cross-cut saw OptiCut 200

WEINIG OptiCut 200-Serie

Perfect entry into high-performance cross-cutting

  • 5 driven feed rollers from below, pressure rollers from above
  • Pneumatic saw stroke
  • Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
  • Waste disposal via blow-out device
  • Saw blade diameter 500 mm

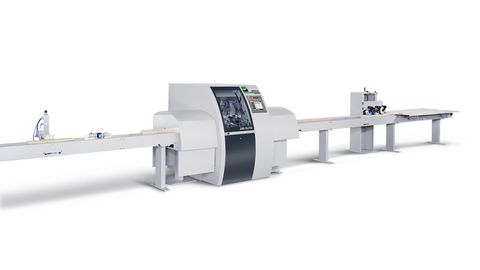

Optimizing cross-cut saw OptiCut 260

WEINIG OptiCut 200-Serie

Efficient performance through intelligent solutions

  • VarioSpeed infeed belt as standard
  • 5 driven feed rollers from below, pressure rollers from above
  • Pneumatic saw stroke
  • Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
  • Saw blade diameter 500 mm

Optimizing cross-cut saw OptiCut 200 Exact

WEINIG OptiCut 200-Serie

The first choice for maximum accuracy

  • VarioSpeed infeed belt as standard
  • 5 driven feed rollers from below, pressure rollers from above
  • Servo-controlled saw stroke as standard
  • Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
  • Saw blade diameter 500 mm

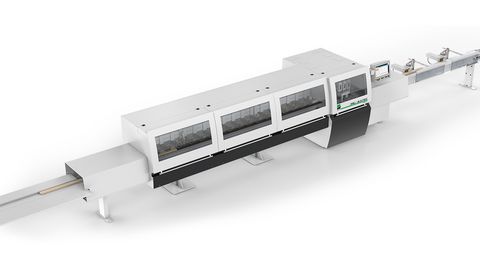

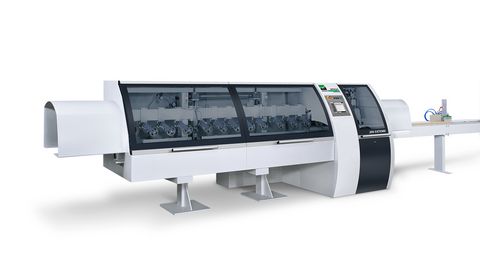

Optimizing cross-cut saw OptiCut 200 Extreme

WEINIG OptiCut 200-Serie

The powerhouse for maximum performance

  • Powerful feed via chain infeed system
  • Unique length measuring system
  • Pneumatic saw stroke
  • Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
  • Saw blade diameter 520 mm
