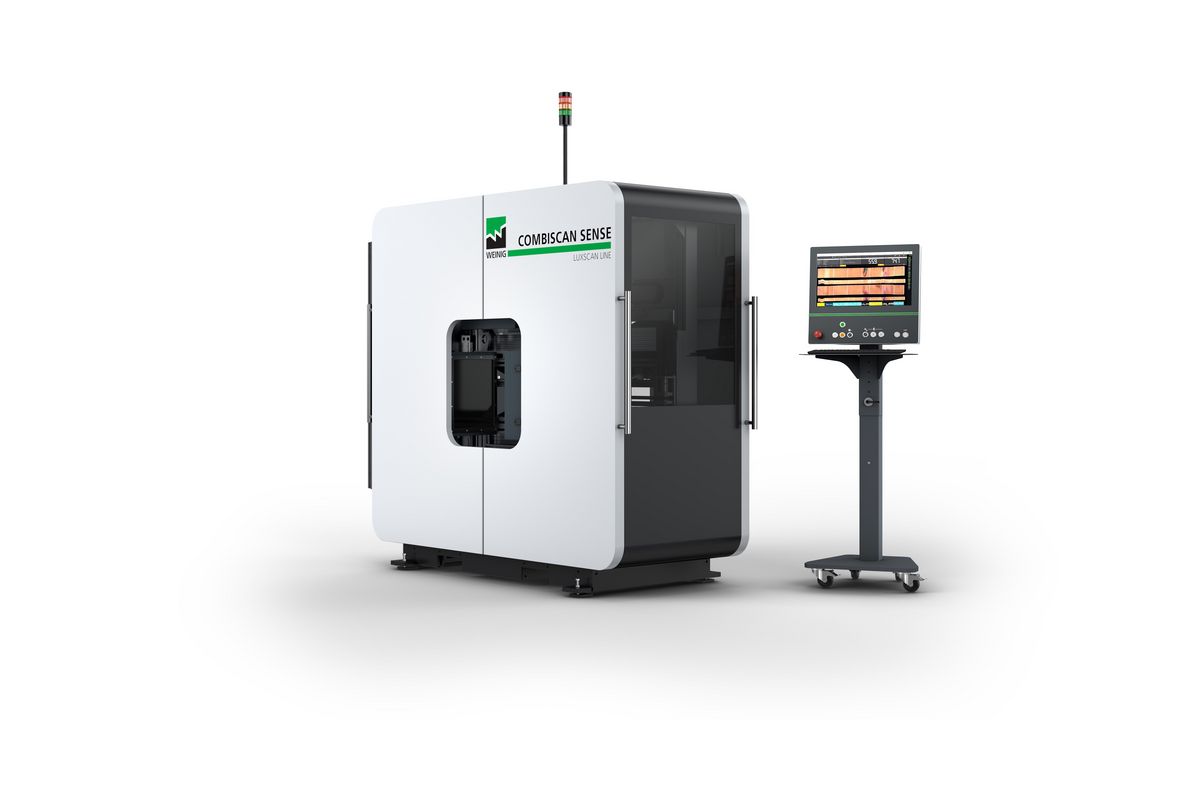

WEINIG CombiScan Sense series: Maximum performance and flexibility

The CombiScan Sense LuxscanLine series is the flagship of the WEINIG scanner portfolio. High-end sensors in a range of combinations create a perfect basis and fulfill every requirement of modern production processes. The CombiScan Sense opens up completely new optimization potential for your production. At the same time, the technology ensures optimal production control and transparency in the production process.

Optimal detection of the wood features is a decisive factor for expedient optimization of the raw material. All wood features differ in their individual characteristics and their detectability for the various scanners. The modular sensor concept of the scanner is inspired by this situation. This allows WEINIG to offer each customer a customized solution.

Simple optimization is the key to efficient production. The CombiScan Sense can be linked with various WEINIG machines, such as cross-cut saws, rip saws and sorting systems. The high-performance optimization software allows a variety of qualities and zones to be created and combined into multiple end products. The products and qualities are stored in a database and can be selected at any time via drag and drop. The logical user interface of the scanner simplifies settings in a visual way providing simple operation for all.


The modular design of the CombiScan Sense allows various sensor technologies to be combined together as modules in accordance with customer requirements. This provides a custom made machine with a perfect sensor combination with a very good price-performance ratio. The standard laser camera enables detection of defects on up to 4 sides. Color features are recorded and reliably recognized with an additional high-resolution, color camera. Not only is it possible to detect blue stain, for example, it is also possible to sort by color features. Lamellae for edge glued panels, for example, can be classified and sorted in color grades before pressing.

An X-ray sensor is also used for defects with varying densities. This enables the machine to look at different surfaces and classify defects according to density. Sensors for shape measurement, moisture, unplaned areas etc. complete the picture.

The scanner also features automatic moving cameras based on a unique mechanical design. This allows for simple, automated changes to the cross section and can also be designed to process random width products at the same time. Thanks to the available sensor technology and modular design, the CombiScan Sense always remains future-proof and adaptable to new challenges in production.

The use of the CombiScan Sense enables you to reduce labor costs while maintaining quality and increasing productivity and flexibility since the sorting criteria can be quickly and easily changed.

All machines

CombiScan Sense C

WEINIG CombiScan Sense

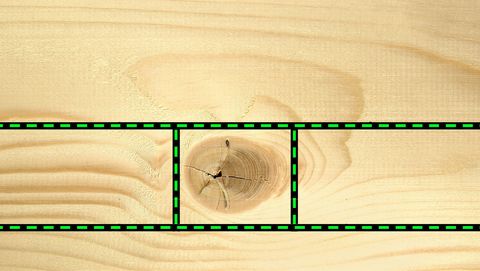

THE scanner for optimizing your cross-cutting

  • Increased recovery since the detection accuracy of the scanner is far superior to manual marking
  • Reduced labor costs, since labor-intensive manual marking is dispensed with
  • Maximum productivity thanks to automated defect detection and optimization
  • More flexible production since many different qualities and products can be produced at the same time
  • Ability to control the quality of end products according to individual customers, etc.

CombiScan Sense S

WEINIG CombiScan Sense

Sorting at the highest level

  • Maximum productivity thanks to automated defect detection and sorting
  • Increased recovery since the detection accuracy of the scanner is far superior to manual sorting
  • Reduced labor costs, since labor-intensive manual sorting of the boards is eliminated
  • More flexible production since many different qualities and products can be produced at the same time
  • Ability to control the quality of end products according to individual customers, etc.

CombiScan Sense R

WEINIG CombiScan Evo

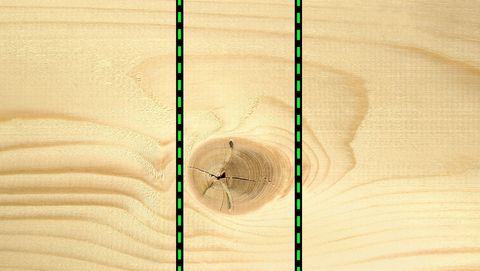

Ripping optimization with sense and purpose

  • Increased recovery since the detection accuracy of the scanner is far superior to manual cutting positioning
  • Increased recovery since two-dimensional optimization of the scanner can predict end-product optimization results
  • Reduced labor costs, since labor-intensive manual marking is dispensed with
  • Maximum productivity thanks to automated defect detection and optimization
  • More flexible production since many different qualities and products can be produced at the same time

The WEINIG CombiScan Sense series provides

  • Fast return on investment
  • Optimization of your products by value, utilization or production objective
  • Extensive statistical functions in real time
  • Compatible with all high-performance optimizing cross-cut saws, high-performance rip saws and sorting systems
  • Optional processing of random width boards in a single production run
  • Optionally upgradeable sensor concepts (x-ray technology, moisture measurement, shape measurement and much more)
  • Complete defect detection: Unprocessed edges, branches, tears, pith, resin pockets, blue/red rot...
  • Tested industrial sensor technology
