WEINIG Conturex 226: Uncompromising dynamism and optimal performance
No compromises – in industrial window production, you need optimal performance and flexibility.
The Conturex 226 achieves the maximum expansion level in the one-man machine segment. Solutions are available in the system area for further performance enhancement.
Four tables and four main spindles share the processing stages to create a seamless and highly efficient process. This enables three parts to be processed simultaneously.
The variety of products and systems in windows, doors and facades is steadily increasing. Processing of individual pieces is correspondingly complex. Not only are transverse and longitudinal processing and drilling required in high quality, elaborate processing such as rabbet joint milling, lock housing and dovetail joints are also required for facade and conservatory parts.
Preparations for fittings are also of the utmost importance. This includes all drillings and milling for door handles, corner/scissor bearings, drilling plugs or notched holes for locking elements, door hinges of various designs, multi-point locks, drillings for cable feedthroughs and installation, handle shells on lift-slide doors and much more besides. The Conturex meets even these requirements highly flexibly and fully automatically.
Different requirements - different prices
The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.
Personal advice – for higher productivity and greater efficiency
Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.
The WEINIG Conturex series offers you
- Complete processing in one clamping process
- Processing without processing times even for small lot sizes
- Automation enables less manpower in production
- Maximum flexibility as a result of the large tool magazine
- Energy feedback modules means savings in energy
The WEINIG Conturex 226 offers you
- Low-vibration construction
- Advanced unit technology
- MBK – multiple spindle drilling head
- No limit to the corner joint possibilities
- Standard interfaces for industry software, e.g. window/door production, WOP or CAD/CAM software.
- High availability
Technical Details

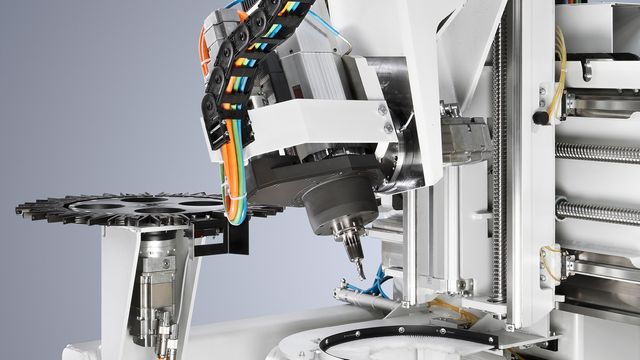

Universal spindle with 5-axis technology (optional)
- 12.5 kW (S6)
- 6 kg tool weight
- Max. 220 mm tool length
- Includes 17-slot tool holder

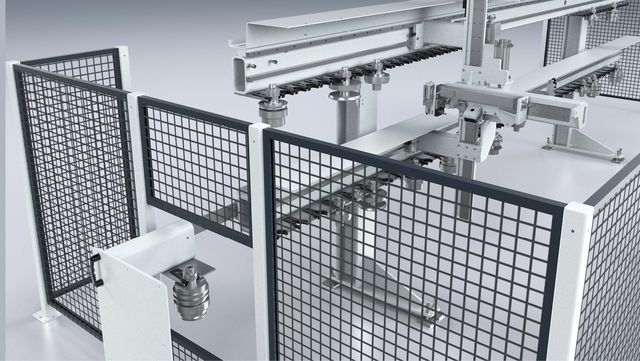

External tool magazine (optional)
The external tool magazine has up to 170 tools slots depending on the model range.
Multiple spindle drilling head
The WEINIG multiple spindle drilling head covers such window production applications as door handles, corner bearings and horizontal drilling, such as corner joints and marking drillings. The device enhances the performance and flexibility of the individual Conturex models.

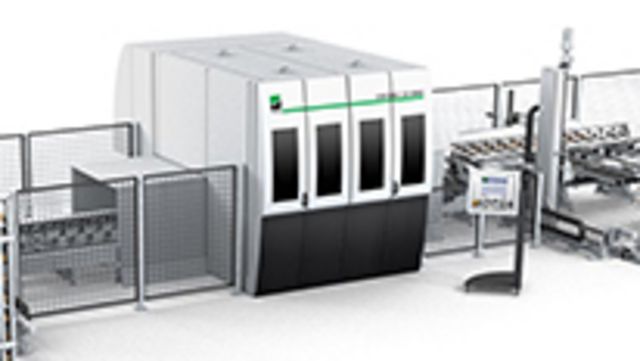

Safety – noise protection – dust protection
The visuals and design of the Conturex reflect the state-of-the-art technology inside it. The elaborate full paneling concept takes consistent account of the high performance. This yields an exemplary level of safety with improved protection from dust and noise.
The controlled extraction directly adjacent to the workpiece and on the tool is unique in the market. The machine functions without expensive chip removal and only requires minimum care.
