WEINIG EasyScan Lite C: The entry-level scanner with artificial intelligence


The WEINIG EasyScan Lite is the new entry-level model with artificial intelligence (AI).

AI is now also revolutionizing the wood industry: Thanks to this technology, the scanner offers a performance level that is comparable to that of the premium models a few years ago and is still available in the lower price segment. With artificial intelligence, the scanner continuously learns and becomes even more precise. Equipped with high-tech sensors and connected to the OptiCore software, the system is an ideal starting point for moving to a completely automated cutting system for your production needs. High productivity, fast production and economical operation are now affordable for all sizes of operation.


Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

The WEINIG EasyScan Lite C offers you

Technical Details

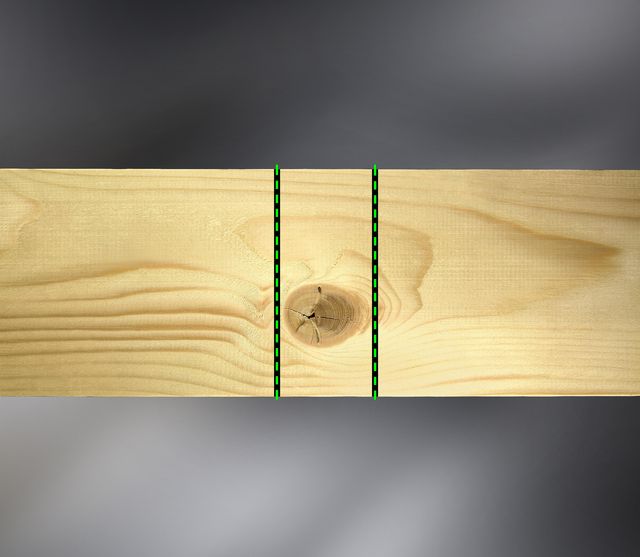

Cross-cutting optimization explained simply

WEINIG CombiScan Evo
WEINIG CombiScan Evo
WEINIG CombiScan Evo

Step 1: The scanners are based upon various sensors, such as laser and color cameras. Your WEINIG expert defines the right sensors and the best combination of these, matched to the wood species, surface quality and customer requirements. Our objective is to achieve the best possible quality of information for any required application.

Step 2: Image processing is handled by the highly sophisticated OptiCore AI software. It detects and identifies defects as well as color variations on the board. The ideally adapted sensor data ensures optimal data processing and defect detection.

Step 3: Optimization via the high-performance OptiCore software calculates the best solution during cross-cutting. In doing so, it takes into account the various customer requests and requirements. Based upon the precise board data calculated during image processing, the board is optimized in accordance with the customer’s settings. This allows a virtually unlimited number of qualities and products to be defined. Thus, even a complex product mix can be quickly and simply optimized. This allows the creation of almost any type of end product.

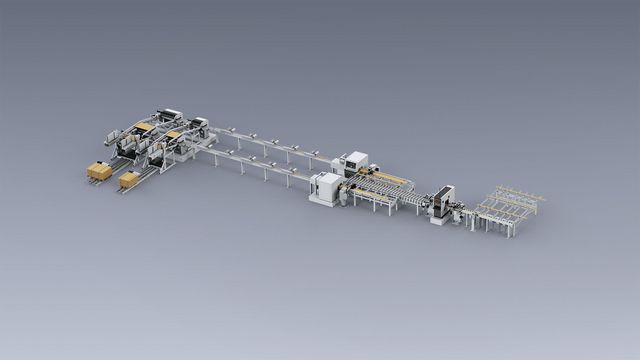

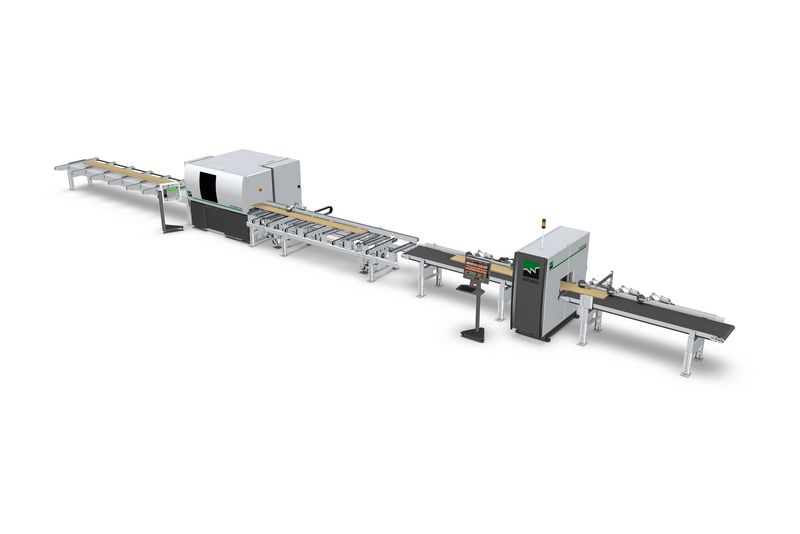

Layout suggestions for EasyScan C

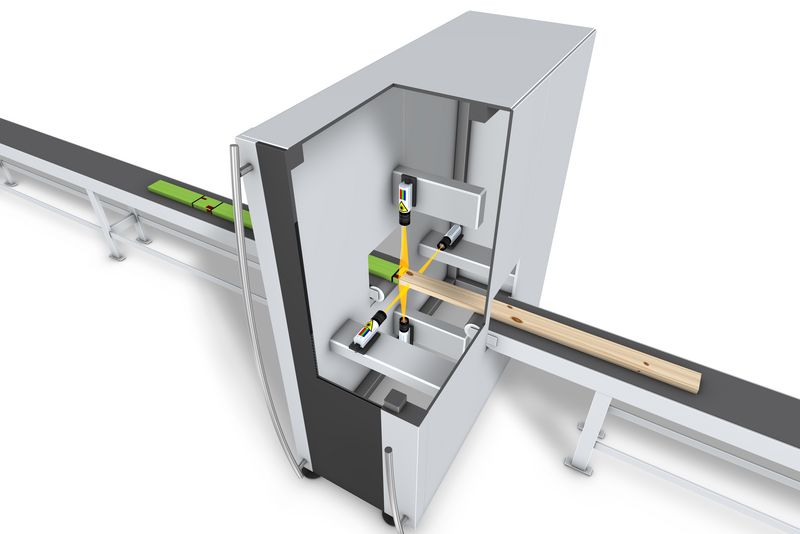

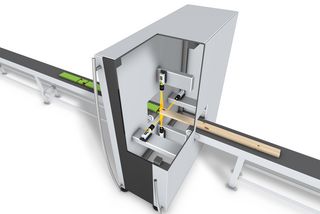

The sensors: The key to success

All sensors are protected by dustproof housings. Our laser and color cameras are installed in every system as standard. With the fastest speed available on the market, these guarantee a high resolution and optimal results. Performance is continually improving through continuous development of this industrial sensor system. This technology detects defects such as knots, pith, cracks, etc. A sophisticated laser system also reliably detects 3D surface defects, such as holes and wane.

OptiCore AI: A revolution in defect detection

OptiCore AI is an intelligent image processing software that uses deep learning, a class of neural networks from the field of artificial intelligence, to recognize the wood features.

This revolutionary method can significantly improve recognition accuracy as the software learns to process images like a human brain. With OptiCore AI, the scanner can be trained to automatically analyze and detect wood defects according to predefined parameters. The recognition results and their repeatability are thus significantly improved and the setup time is reduced.


Further information


Simple, fast and sustainable: more details in a downloadable PDF document.

WEINIG EasyScan & EasyScan Lite brochure (PDF, 7 MB)

Technical data

Open table

Further images
