WEINIG Conturex SYSTEM - dual-track: System solution with a unique selling proposition

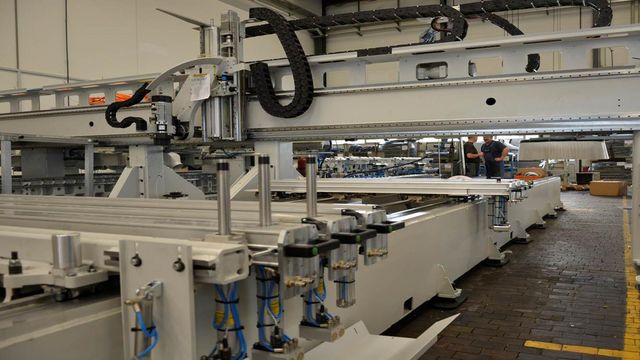

Production with the Conturex means complete processing of window and door components in a single clamping. A prerequisite for this is patented clamping table technology. Regardless of the expansion level or investment volume, every system that leaves the Tauberbischofsheim plant has this CNC-controlled workpiece guidance via which a workpiece, once positioned, can be held in the same position for the duration of processing.
Weinig has expanded its Conturex philosophy into a modular concept. Tables, portals, assemblies, tool magazines and mechanization in the most diverse combinations allow the construction of highly complex systems.. Also included is the entire periphery of window production with automation elements, from the unmachined parts warehouse and moulders to the cutting systems.
Our extensive expertise across the entire window production process created the challenge of networking all components with each other to create maximum efficiency in the production process. Consequently, WEINIG has also developed a suitable modular control concept that ensures complete compatibility of hardware and software.
The WEINIG Conturex SYSTEM technology offers you
- Networking of individual production steps based upon proven Conturex technology
- Everything from a single source. WEINIG - Your partner in solid wood processing
- Customized complete solutions for optimal profitability and quality
What does Weinig Conturex SYSTEM offer you?
- Processing without processing times even for small lot sizes
- Flexibility and enhanced performance via the new Vario-PowerGrip clamping table
- Modularity of the units
- Energy feedback modules means savings in energy
WEINIG - Your partner in solid wood
With professional project management, WEINIG creates the basis for perfect implementation of a project for our customers.
Safety – sound insulation – dust protection
The visuals and design of the Conturex reflect the state-of-the-art technology inside it. The elaborate full paneling concept takes consistent account of the high performance. The result is an exemplary safety standard while also setting benchmarks in sound insulation and dust protection.
The controlled extraction directly at the workpiece and the tool is a unique selling proposition. This works without expensive chip removal technology and requires minimal maintenance.
Options for extension
It all started with wedding dresses
Exclusive bridal fashion shop Très Chic in the Dutch town of Hengevelde and nearby window manufacturer Hebo Kozijnen B.V. were founded by the same man. Marinus Kuipers knew how to build a market. His son understood how technology can shape success.
Marinus Kuipers had a lucrative wedding attire business. In the construction boom of the early 1970s, he also began selling turnkey homes. This perfectly complemented his window production business, which quickly expanded. On his travels, the entrepreneur's businesses were never far from this thoughts. One tour in 1982 led him to a bridal fashion customer in Tauberbischofsheim. Marinus Kuipers took the opportunity to visit WEINIG. On the same day, he signed a contract for a window production line. His son Norbert was there. In 1988, Norbert took over the business from his father and specialized in window production.
Today, Hebo Kozijnen B.V. is one of the leading window manufacturers in Holland. The factory in Hengevelde contains five operational Conturex CNC centers. The customer's investment in the WEINIG system was the culmination of a long search for the perfect production technology. They tried a number of approaches, each time completely reconfiguring the company's production. However, the quality-conscious window manufacturer was never satisfied. “The lack of facility to firmly clamp the work piece was the problem,” says Norbert Kuipers.
At LIGNA in 2005, he discovered the WEINIG Conturex. The entrepreneur knew immediately: “That is how we need to work in future.” The new Conturex handled all processing completely autonomously and delivered perfect product quality.
Today, with a capacity of 5,000 running meters per week in wooden window production, Hebo would be unthinkable without the investment in the Conturex. Having the courage to risk everything on a new system at the time required a certain lack of inhibition. Norbert Kuipers had this. He reduced bridal fashion, housebuilding and window production to a common denominator: Invest in the right technology and enjoy good sales later.
Everything in hand
Maximum production depth is indispensable for Swiss window manufacturer Adi von Euw to maintain high-quality manufacturing. However, this only requires a small team since the degree of automation in the operation is enormous.
Adi von Euw wanted direct access to all stages of production of his high-quality windows. That is why every process stage from raw materials storage to surface treatment has been relocated to the Rothenthurm factory. This also includes metal processing for the company's own wood/aluminum systems. At the same time, the Managing Director has consistently driven forward the development of operations towards maximum productivity. As the variety of profiles in the market has expanded, we have had to adapt our technology accordingly. "The Conturex concept immediately fascinated me," says Adi von Euw. The highly productive system with complete processing of even complex profiles in a single clamping enables switching from one order to another with no changeover. The system is also based upon a modular concept that enables customized solutions for every requirement. Von Euw's tripartite Conturex system comprises 6 portals. Processing is performed on two tracks in parallel, which are equipped with 16 tables. Four of these supply the processing units alternately with window parts. Profile splitting with one and the same tool configuration ensures a high throughfeed, which can also seamlessly accommodate immersion functions. The system produces Von Euw's entire product spectrum. This includes round arch production, angled assembly of window and lift-slide door elements as well as angled window constructions with angles of ± 75 degrees. The required 2 parts per minute can be processed effortlessly. "In principle, the concept even enables performance of more than 3 parts per minute," says WEINIG window expert Dieter van Dyck. The fully-automated system delivers this high output with one-man operation and in excellent quality. "We can fulfill almost any customer request with little effort," says Adi von Euw.
A meeting of quality fanatics (left to right): Fredy Dormann (WEINIG Holz-Her Schweiz), Klaus Müller (WEINIG Head of Marketing and Communication), Adi von Euw (Managing Director of Von Euw Fenster AG) and Dieter van Dyck (WEINIG Sales and Project Director)
"I never want to handle another workpiece manually"
Optimal automation is the stated objective of French window manufacturer Bader. Managing Director Patrick Kaltenbacher had correspondingly clear visions for his new production equipment.
As a qualified mechanical engineer, competitive quality and cost reduction are priorities for Patrick Kaltenbacher. Since taking the helm of the company in 2002, he has had one particular objective – unstaffed production. "I will be happy when we never have to handle another workpiece," says Patrick Kaltenbacher.
At the Messe Basel trade fair, he came across the WEINIG Conturex CNC processing center. Complete processing with milling, drilling and profiling of external notches in a single pass came very close to his vision of perfect production. However, he also wanted to incorporate warehouse logistics into the process. The WEINIG technicians configured the a portal charging system with vacuum suction for the Bader workshop. The systems takes the raw scantling from the stack and feeds it to the infeed mechanization of the cross-cut saw. A further request was the integration of glazing bead production into the overall process. This is where the innovative WEINIG glazing bead management came in. The WEINIG Powermat not only processes the scantlings on four sides, it also profiles the glazing beads with ship laps in the same throughfeed. The beads, which are sorted in a special carriage, can then be fed back into the remaining production process in a sorted condition.
The third highlight of the system is the tool cleaning. Tools are fed into the cleaning bath automatically to build-up of debris. This means system downtime. The system has only been running for a matter of months. However, Patrick Kaltenbacher is already full of praise. "It is the system I have wished for."
Englert Fensterbau - success with the WEINIG Conturex Compact
Window production in its 4th generation
Tradition and progress are two decisive elements that confront you at Englert-Fensterbau in Sachsenhausen. On the one hand, the workshop has been in business since 1889 and is now in its 4th generation and successfully managed by master glazier Hubert Englert. On the other hand, the business is growing steadily and is now active in the regional market, with 7 assistance glaziers and an apprentice.
In the Conturex CNC center, Weinig offers an established machine concept that can be flexibly tailored to the requirements of window manufacturers – from standardized to highly complex systems. According to an article in trade journal BM, 10.2014 issue:
Östringer Fenster + Türen
Östringer Fenster + Türen: Manufacturing like the big boys
Can small workshops still keep up when it comes to window and door production? Östringer answered this question in its own way: Their highly flexible CNC complete processing line practically dissolves the differences in performance between 'large and small'.
Tischlerei Kolb: Profitable production in a changing market
In the Bonn region, Kolb GmbH is part of the furniture. This is primarily attributable to the firm's interdisciplinary concept. The company adapts its window production precisely to the latest market requirements.
Two birds with one stone
Frequent changes in market conditions require intelligent investment from window manufacturers. The decision to invest in new production technology is easier if it opens up new opportunities.
Like many other window manufacturers, German company Kolb was faced with increasing energy-saving requirements combined with increasing customization requests from customers. "Our objective to modernize production was therefore always about greater flexibility rather than increasing capacity," explains Josef Kolb. At the same time, the same technology was to be used to establish production of wood/aluminum windows. "The trend in the market is clearly heading in this direction and we want to be a part of it," says the Managing Director.
The company solved its problem with the WEINIG Conturex. From the outset, Josef Kolb was fascinated by the processing technology on the patented PowerGrip clamping tables. "Dimensional stability and surface quality are also very good with slender and short parts," he says. The expansion of the product portfolio has also been seamless. Josef Kolb: "The system enables us to produce different variants from pure timber windows to wood/metal windows with a single tool set. This saves us time and significantly reduces our costs." Thus, the introduction of modern WEINIG complete machining with PowerGrip technology has not only improved the company in terms of flexibility but has also opened the door to new markets.
On the right track: Josef Kolb has future-proofed his production facilities
You have to believe in the future
Such was the title of the attached report on window production at Klarer.
Klarer Fenster AG has ordered a new production line. Why this makes sense and what the considerations were is explained by the management themselves.
(Source: website of Klarer Fenster AG, http://www.klarer.ch/home/)
Smooth series production needs a strong partner. Fensterwerk Schröder GmbH took its lessons from a crash.
Shock at Schröder in Hesel, North Germany: A self-inflicted breakdown of the automatic planer paralyzed wooden window production. “At that time Weinig Service helped during the night. That’s not something you don’t forget” says Manfred Fecht, the Timber Production Manager, remembering the occasion. So when it came to acquiring a modern profiling center, Weinig was at the top of the list. “Meeting deadlines is of primary importance for us. In addition, we needed a fast line which could be used to produce the roughly 40 systems we have with consistently high quality and with minimal manpower”, says Hendrik Schröder, explaining their requirements. The Conturex 124 in the 2nd generation was the perfect setup for them. They also invested in a Weinig optimizing cross-cut saw, which is linked up to the Conturex. The positive experience has proved the window specialists right: “I am impressed with the reliability of the line” says the Managing Director today. This is key, because Schröder GmbH makes full use of the Conturex capacity.
